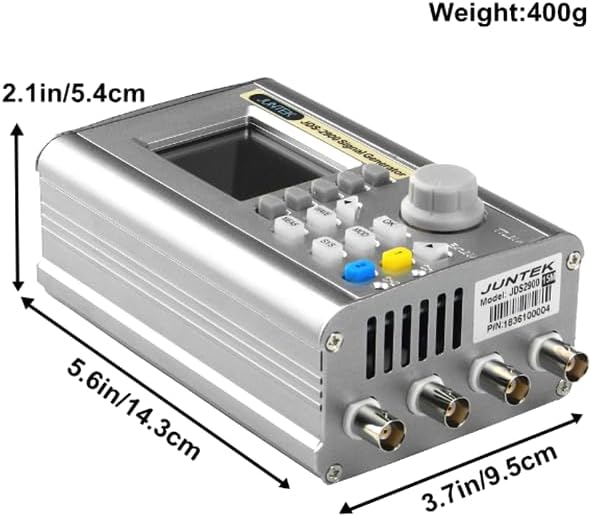

JDS2900 60MHz fully CNC dual channel DDS function arbitrary wave signal source generator frequency counter frequency scanner

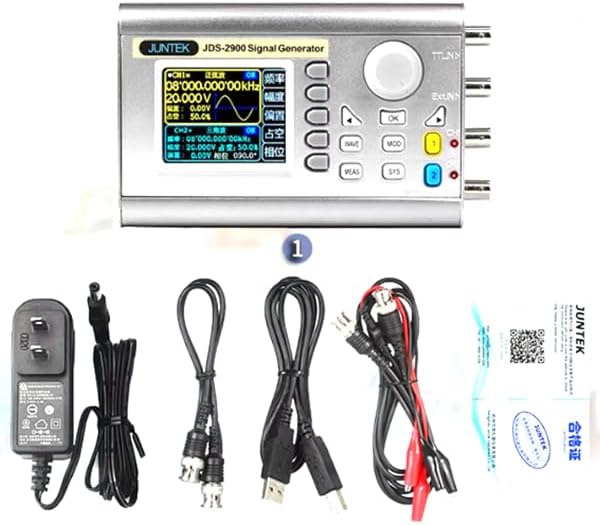

Delivery List 1. DDS*1 signal generator 2. Power adapter(V:100~240V~50/60Hz, Z:5.0V-0.2A)*1 3. BNC-BNC*1 cable 4. USB data cable*1 5. BNC-clip cable*2 1.Arbitrary waveform generator adopts large-scale integrated circuit FPGA and high-speed microprocessor MCU. The internal circuit takes the active crystal oscillator as the reference. The signal stability is significantly improved. 2.Using two-channel DDS signal and TTL electrical level output to generate accurate, stable, low distortion output signal. includes sine wave, square wave, triangular wave, saw tooth wave, pulse wave, white noise, user-defined waveform, etc. d. 3.With linear marking (Max. up to 999.9s) and logarithmic frequency marking functions. It has the function of measuring frequency, measuring period, measuring and counting the width of positive and negative pulse. ►320*240 2.4" TFT color LCD display, simultaneously displays CH1 and CH2 parameters. ► Ability to reproduce individual waveform patterns. ► Use soft silicone keys instead of traditional patch keys, high sensitivity and convenient to operate. ►60 groups of arbitrary wavefunction storage, the memory depth of each group is 2048*14bit. ► The working cycle of each channel can be adjusted independently, the adjustment resolution is 0.1%. ► With digital signal output function, CMOS output range 0~10V. ► 266 Sampling speed MSa/s and vertical resolution of 14 bits. ► Equivalent phase performance difference 360° continuously adjustable. Dual channels of equivalent performance can simultaneously output the same or different functional signals or arbitrary waveform signals, all parameters can be adjusted independently, and the phase difference between the two channels is continuously adjustable from 0 to 359.9 °. ► Trigger functions - four trigger modes. You can use a sine wave, a square wave, a saw tooth wave, or an arbitrary wave to generate a pulse flow. The number of pulse periods is constantly adjusted between 0-1048575. ► Pulse width is precisely adjustable. With independent working interface, the function is clear; with independent control switch, convenient to operate. Control range: 25ns-4000s; Constantly adjustable pulse displacement between 0% -120%; The pulse amplitude can be continuously adjusted between 0-10V and be accurate to 0.01V.

• JDS2900 60MHz
• 320*240 2.4" TFT color LCD display, simultaneously displays CH1 and CH2 parameters
• Ability to reproduce individual waveform patterns.
• Power adapter(V:100~240V~50/60Hz, Z:5.0V-0.2A)*1
